What this driver does
The HDMI display audio driver handles the sound that travels down a display cable rather than through the motherboard's analogue jacks. Both HDMI and DisplayPort are designed to carry multichannel audio embedded in the same link that carries video, so a single cable to a television, monitor, or audio-video receiver delivers both the picture and the soundtrack. This driver is what makes that embedded audio path visible to Windows as a usable output. Crucially, this driver lives inside the graphics driver package, not the motherboard audio stack. The display controller on the GPU is what packetises the audio and interleaves it into the HDMI or DisplayPort data islands between video frames, so the sound is generated and timed by the graphics silicon. That is why updating or reinstalling the graphics driver almost always replaces the HDMI audio component at the same time, and why a GPU driver fault can silence the display audio endpoint. To Windows the result is one or more additional audio endpoints, listed with the name of the connected display or receiver rather than a codec. Each connected sink that reports audio capability in its EDID appears as its own endpoint, which is how you can send sound to a TV on one output while a monitor on another output stays silent. The endpoint carries the same volume and default-device behaviour as any other Windows output. The sink's own capabilities, read from its EDID audio data block, decide what the driver can offer. A basic monitor may accept only stereo, while an AV receiver advertises multichannel and compressed bitstream formats such as Dolby or DTS. The driver negotiates a format both ends support, and when a bitstream passthrough option is enabled it forwards the compressed stream untouched for the receiver to decode.
Observable states associated with this device class
These states describe how hardware, firmware, operating-system services, and a driver can interact. They do not identify a cause on their own.
- The connected TV or receiver disappears from the Windows sound output list even though the picture is fine
- Sound plays through the PC's own speakers instead of the HDMI display because the wrong endpoint is default
- The HDMI audio endpoint is greyed out and marked Not plugged in despite a working video signal on the cable
- Multichannel or Dolby bitstream passthrough to an AV receiver fails and falls back to stereo or silence
- Audio and video drift out of sync on the display because the embedded audio timing is not tracking the frames
- The endpoint reappears only after reinstalling the graphics driver, since HDMI audio ships inside the GPU package

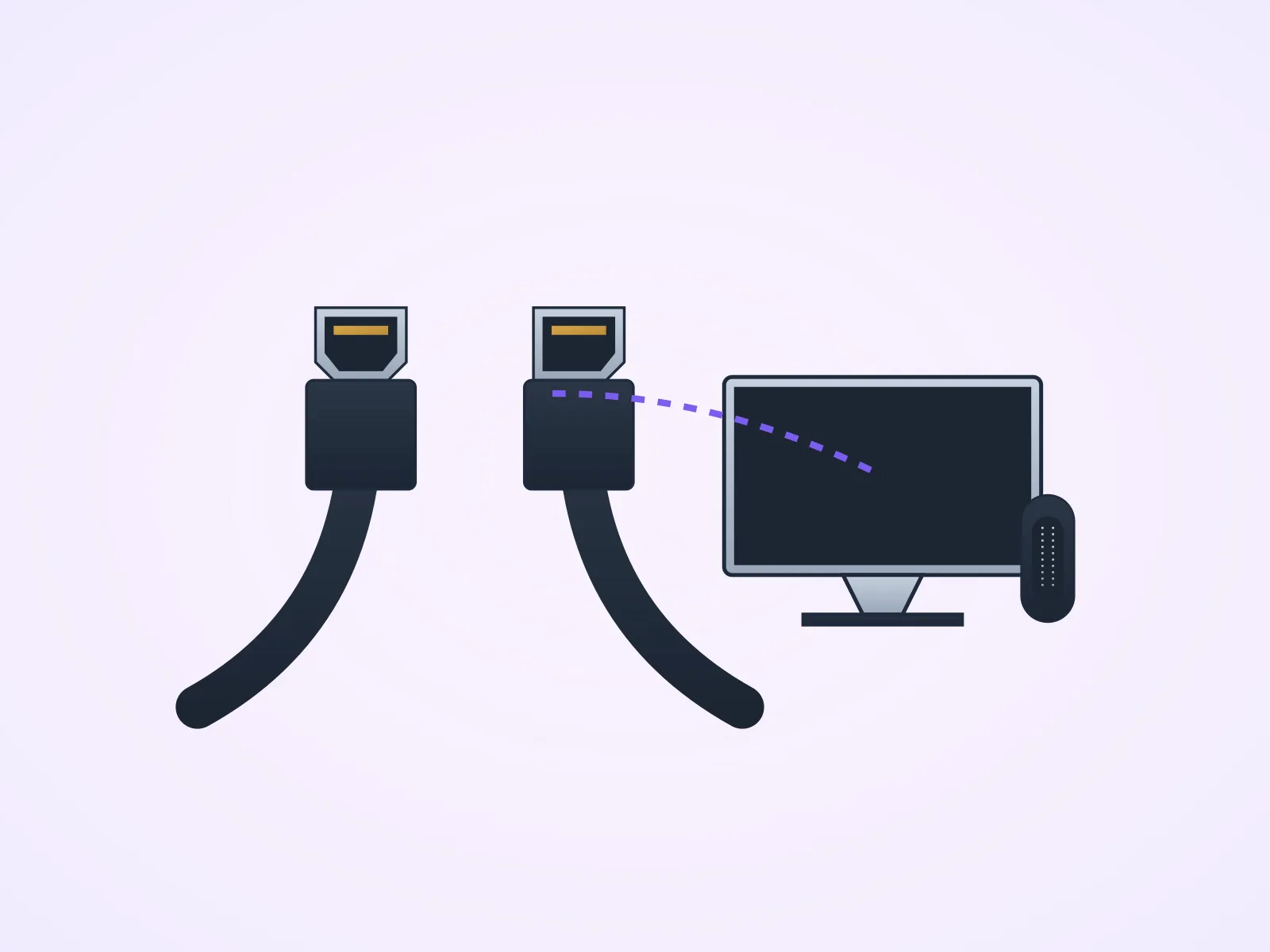

How it works in a real system
Drivers operate in the background as translators. This setup shows the software, connection, and physical hardware that the HDMI display audio driver supports.
Compatibility model
Driver compatibility is defined by the device hardware identifier, the operating-system driver model, processor architecture, and the interfaces implemented by the hardware or firmware. A shared device class does not imply that packages from different manufacturers are interchangeable.
