What this driver does
A Bluetooth radio driver connects the operating system to the Bluetooth controller over the Host Controller Interface, the standardised HCI command and event channel defined by the Bluetooth specification. On most laptops the controller shares a combo module with the Wi-Fi radio, so the same M.2 card carries both, and the driver arbitrates the shared 2.4GHz antenna between them. Above HCI, Windows runs the Bluetooth stack that exposes profiles to applications. Discovery and pairing are the driver's most visible jobs. It drives inquiry scans to find nearby devices, exchanges capabilities, and runs the pairing exchange that produces a bond, a stored long-term key so the two devices trust each other on future connections. Secure Simple Pairing and, for Low Energy, the LE Secure Connections model both run through commands the driver issues to the controller. Audio is where users notice the driver most. Classic Bluetooth headphones use the A2DP profile for stereo music and the Hands-Free Profile for calls, and the driver routes those over the SBC, AAC, or aptX codec the two ends agree on. Because HFP drops audio quality when the microphone is active, a call can sound worse than music, and a stale driver can worsen the stutter as it juggles the L2CAP and RFCOMM channels that carry the streams. Low Energy is a separate world the same driver serves. LE devices such as mice, styluses, fitness bands, and beacons use the Attribute Protocol and the Generic Attribute Profile, GATT, to publish small chunks of data as characteristics the host reads or subscribes to. The driver maintains the GATT connection interval and slave latency that trade responsiveness against battery life, which is why an out-of-date driver can make an LE mouse feel laggy or drain quickly.
Observable states associated with this device class
These states describe how hardware, firmware, operating-system services, and a driver can interact. They do not identify a cause on their own.
- Bluetooth headphones stutter or cut out whenever a large Wi-Fi download runs on the same combo radio
- A paired mouse or keyboard reconnects slowly after wake, or lags noticeably during quick cursor movement
- Headset call audio sounds muffled because the link drops to the Hands-Free Profile whenever the microphone is used
- Devices pair successfully once but never reconnect automatically, so they must be removed and paired again
- The Bluetooth radio vanishes from Device Manager with Code 43 after the laptop resumes from modern standby
- Low Energy accessories such as a stylus or fitness band fail to expose their GATT services and show as unknown
How it works in a real system

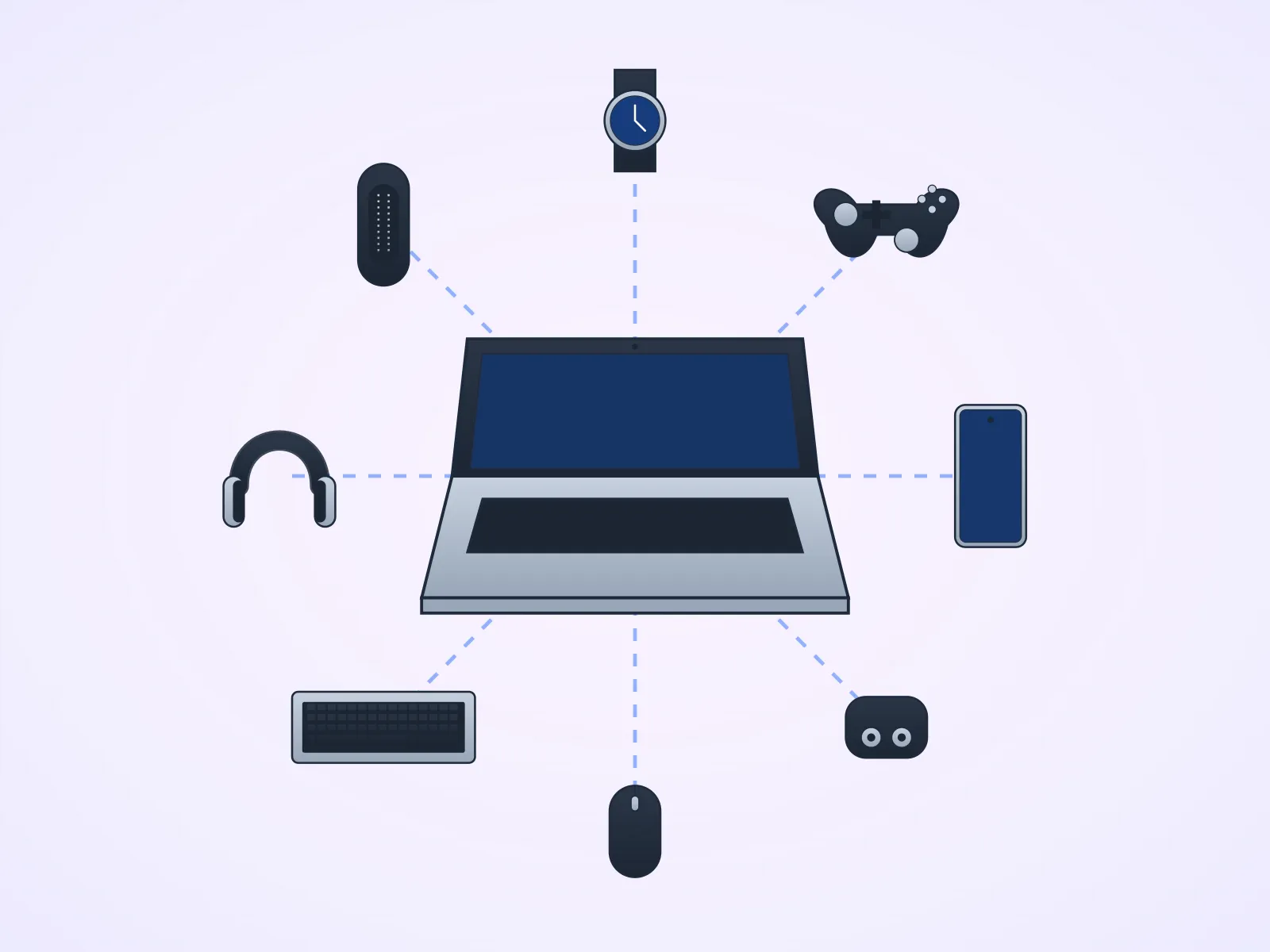

Drivers operate in the background as translators. This setup shows the software, connection, and physical hardware that the Bluetooth radio driver supports.
Compatibility model
Driver compatibility is defined by the device hardware identifier, the operating-system driver model, processor architecture, and the interfaces implemented by the hardware or firmware. A shared device class does not imply that packages from different manufacturers are interchangeable.
