What this driver does
A USB xHCI controller driver operates the eXtensible Host Controller Interface, the single host-controller design that replaced the older UHCI, OHCI, and EHCI controllers and now drives every USB speed on a modern PC. The driver programs the controller's registers, sets up the Transfer Request Block rings the controller reads to move data, and services the interrupts the controller raises when a transfer completes. It is the root of the whole USB tree your ports hang from. Enumeration is the driver's headline task. When you plug in a device, the controller detects the connection, the driver assigns an address, then reads the device descriptor, configuration descriptor, and interface descriptors to learn what the device is and what endpoints it offers. The dreaded 'Unknown USB Device, device descriptor request failed' means this conversation broke down before Windows could identify the device. Once a device is enumerated, the driver schedules its traffic across the four USB transfer types. Control transfers carry setup and commands, bulk transfers move large blocks such as file copies to a flash drive, interrupt transfers carry small timely payloads from a mouse or keyboard, and isochronous transfers stream time-sensitive audio and webcam data with guaranteed bandwidth but no retries. The driver allocates bandwidth so these coexist on one bus. Power and topology fill out the driver's remit. Selective suspend lets an idle device or port drop into a low-power state to save energy, and the driver decides when to suspend and resume each one. It also manages the root and external hubs, tracks per-port current so an over-current condition triggers the 'power surge on hub port' warning, and coordinates the USB Type-C and Power Delivery negotiation on ports that support it.
Observable states associated with this device class
These states describe how hardware, firmware, operating-system services, and a driver can interact. They do not identify a cause on their own.
- A device shows as 'Unknown USB Device' with 'device descriptor request failed', so Windows never identifies it
- External USB drives disconnect and reconnect on their own because selective suspend puts them to sleep mid-transfer
- Every port on the controller stops responding at once until the machine is rebooted or the controller is reset
- A USB 3.2 drive transfers at USB 2.0 speeds because it enumerated on the wrong root hub or at the wrong speed
- Windows warns of a 'power surge on hub port' when a device draws more current than the port budget allows
- The xHCI controller shows Code 43 after sleep, or Code 10, and disabling then enabling it is the only recovery
How it works in a real system

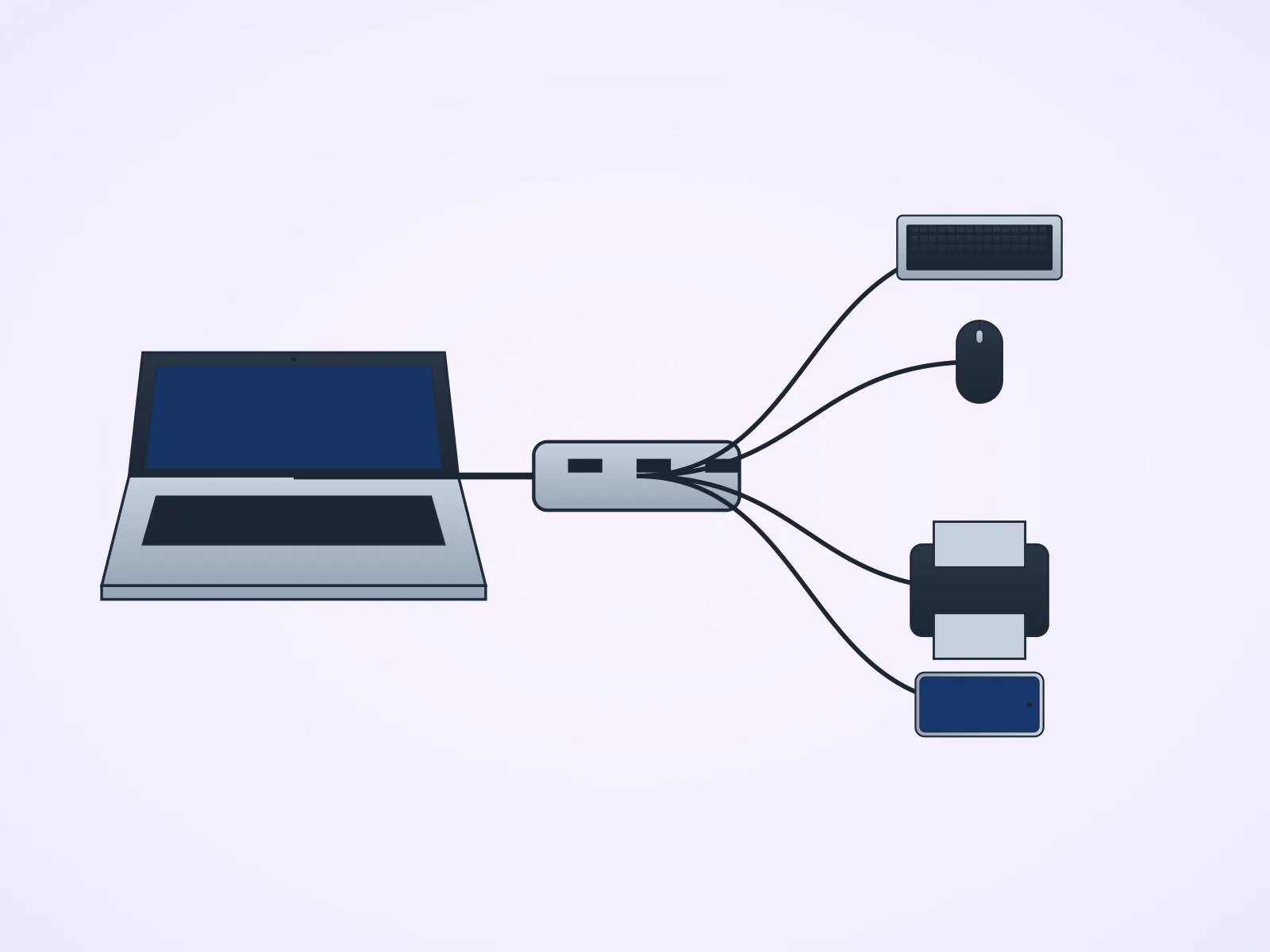

Drivers operate in the background as translators. This setup shows the software, connection, and physical hardware that the USB xHCI controller driver supports.
Compatibility model
Driver compatibility is defined by the device hardware identifier, the operating-system driver model, processor architecture, and the interfaces implemented by the hardware or firmware. A shared device class does not imply that packages from different manufacturers are interchangeable.
