What this driver does

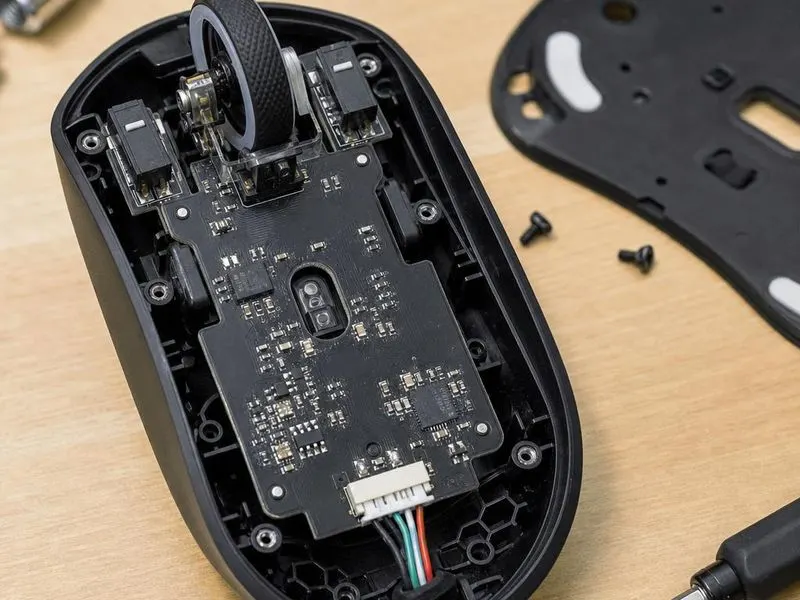

A mouse driver is the software that turns physical hand movement into a moving cursor. Underneath the shell sits an optical or laser sensor that photographs the surface thousands of times per second, compares successive frames, and outputs relative motion counts on X and Y axes. Those counts, together with button states and wheel ticks, are packaged as HID (Human Interface Device) reports and sent to the PC, usually over USB or a 2.4GHz wireless receiver. On Windows the reports pass through hidusb.sys and hidclass.sys, then mouhid.sys converts HID mouse usages into the motion and button events Windows expects, and mouclass.sys presents one logical pointing device to the desktop. The Win32k subsystem applies pointer acceleration and the system sensitivity slider before the cursor actually moves. This is why two mice at the same sensor resolution can feel different: the driver and Windows pointer settings shape the raw counts before they reach the screen. Sensor resolution is measured in DPI or CPI, counts per inch of physical movement. A higher DPI means the cursor travels further for the same hand motion. Polling rate, expressed in hertz, is how often the mouse reports its state; 125Hz reports every 8ms while 1000Hz reports every millisecond, which lowers input latency for fast gaming movement. The generic driver supports whatever the mouse reports by default, but changing DPI stages or polling usually needs the vendor app. Extra features live outside the standard mouse HID usage table. Programmable side buttons, on-the-fly DPI switching, lift-off distance tuning, surface calibration and RGB lighting are exposed through additional HID collections and a vendor filter driver with a resident service. The pointer keeps working on the built-in Microsoft driver, but these gaming and productivity features stay dormant until software such as Logitech G HUB, Razer Synapse or Corsair iCUE is installed.
Observable states associated with this device class
These states describe how hardware, firmware, operating-system services, and a driver can interact. They do not identify a cause on their own.
- The cursor stutters, jumps or briefly freezes during fast movement, hinting at a polling or HID report fault
- A single physical click registers as a double-click, pointing at a switch debounce problem in firmware
- Programmable side buttons or the DPI-shift button do nothing while left and right clicks still work
- A wireless mouse lags or drops movement under 2.4GHz interference or with a stale receiver driver
- DPI stages and polling-rate options are missing because only the generic mouse driver is loaded
- Device Manager shows the mouse under Mice with a yellow warning and a code such as 10, 43 or 28
How it works in a real system
Drivers operate in the background as translators. This setup shows the software, connection, and physical hardware that the Mouse driver supports.
Compatibility model
Driver compatibility is defined by the device hardware identifier, the operating-system driver model, processor architecture, and the interfaces implemented by the hardware or firmware. A shared device class does not imply that packages from different manufacturers are interchangeable.
