What this driver does
A chipset is not one part; it is the collection of controllers built into the Platform Controller Hub, or PCH, that fan a handful of CPU links out into dozens of usable ports. The chipset driver rarely contains executable device logic. Instead it ships INF files, small text descriptors that map hardware IDs such as PCI\VEN_8086 to friendly names and to the correct built-in Windows driver. When those descriptors are missing, Device Manager falls back to a generic 'PCI standard host CPU bridge' or an outright unknown device, and features hanging off that bus stay dark. The most visible job is PCIe root-port and lane description. A desktop CPU exposes a fixed budget of lanes, and the PCH multiplexes extra lanes across M.2 slots, network chips, and expansion slots. The INF tells Windows which root port maps to which slot and what link width to expect, so a Gen4 x4 NVMe drive negotiates x4 rather than dropping to x1. Get the mapping wrong and a fast SSD trains at a fraction of its rated speed. The driver bundle also registers the SMBus and I2C controllers that carry housekeeping traffic. SMBus reads the SPD chip on each memory module to report timings, and it lets monitoring tools poll voltage and temperature sensors on the board. If the SMBus controller shows as unknown, hardware-monitoring apps report blank sensors and memory tooling cannot read module identity. Finally, the chipset package wires up ACPI power management: the C-states that idle the cores, the S3 and modern-standby sleep transitions, and the LPM link power for SATA and USB. The INF binds Intel or AMD power-plan components so the CPU can drop to low P-states at idle. A stale or absent binding is why a machine wakes instantly from sleep, refuses to reach deep sleep, or sits pinned at base clock because turbo residency never engages.
Why updating matters
Chipset INF revisions are quiet but consequential. A refreshed package can add the hardware IDs for a stepping of silicon that shipped after the board launched, which is the difference between a clean install and a fistful of unknown PCI devices in Device Manager. On AMD Ryzen boards the accompanying power plan has repeatedly changed how quickly cores boost and how aggressively they idle, so a newer INF measurably alters responsiveness and thermals. Updates also correct link-training and ASPM behaviour. Early revisions of a PCH INF sometimes advertise the wrong Active State Power Management policy for a root port, and the symptom is a device that vanishes under load or throws WHEA correctable-error warnings in the Event Viewer. A corrected descriptor lets the root port hold its trained link state instead of dropping to a lower gear at the first idle window. Security and errata fixes ride along too. The Management Engine Interface, the SMBus arbitration logic, and the serial IO controllers have all received errata workarounds delivered through revised INF and small filter components. Skipping those leaves a machine exposed to the very bus stalls and wake failures the revision was written to close. You get chipset revisions two honest ways: Windows Update delivers many PCH INF packages automatically as optional driver updates, and your board or laptop maker's support page for your exact model publishes a matched bundle. Match the package to the board, not to a generic chipset name, because OEM boards frequently carry tuned power tables.
Signs a driver may be failing
- Several 'PCI standard host CPU bridge' or unknown-device entries with yellow triangles appear in Device Manager after a fresh install
- An NVMe drive in the CPU M.2 slot trains at Gen3 x1 instead of Gen4 x4 and read speeds are a fraction of the rating
- Hardware-monitoring apps show blank voltage and temperature sensors because the SMBus controller is unrecognised
- The machine wakes from sleep the instant it is put to sleep, or never reaches S3 deep sleep at all
- CPU cores stay pinned near base clock and never reach advertised boost residency at idle
- USB hubs hanging off the PCH intermittently lose power to attached devices under load
How it fits into the OS stack
Drivers operate in the background, serving as translators. Here is where the Chipset driver sits between your apps and the hardware.
Distribution comparison
Before you start
"Only install drivers from your operating system's update tool or the manufacturer's official support page."
Where this driver comes from
Drivers for Chipset driver typically reach your PC through one of three routes: shipped natively with the Windows operating system, delivered dynamically through system updates, or published directly by the hardware manufacturer for your specific model.
To ensure system stability, always allow your OS to handle baseline generic drivers. If you are experiencing performance issues or require advanced control panels, identify the exact model of your hardware and consult the device manufacturer's dedicated support resources.
Fixing installation problems
Clear the unknown-device backlog
Open Device Manager, expand 'Other devices', and note every entry with a yellow triangle. Right-click each, choose Properties, and read the hardware ID on the Details tab; VEN_8086 is Intel and VEN_1022 is AMD, which confirms the platform family before you install anything.
Install the matched chipset bundle
Run the chipset INF package that matches your board or laptop model and reboot when prompted. The package registers PCIe root ports, SMBus, and the power components in one pass; a reboot is required so ACPI re-enumerates the tree with the new descriptors.
Verify PCIe link training
After the reboot, check your NVMe drive and add-in cards report their rated link width and generation. If a device still negotiates a slower link, toggle the relevant slot's Gen setting in BIOS and confirm ASPM is set to a policy the INF supports.
Repair sleep and power behaviour
If the system still refuses deep sleep, open an elevated command prompt and run powercfg /a to list available sleep states, then powercfg -devicequery wake_armed to find devices holding it awake. Disable 'Allow this device to wake the computer' on the offending PCH device.
Restore SMBus monitoring
If sensors read blank, confirm the SMBus controller shows a named driver rather than an unknown device, then relaunch your monitoring tool so it re-probes the bus. Only one app should own the SMBus at a time to avoid arbitration stalls.
How to uninstall or rollback
Step 1
Step 2
Step 3
Safety Warning
How the Platform Controller Hub is organised

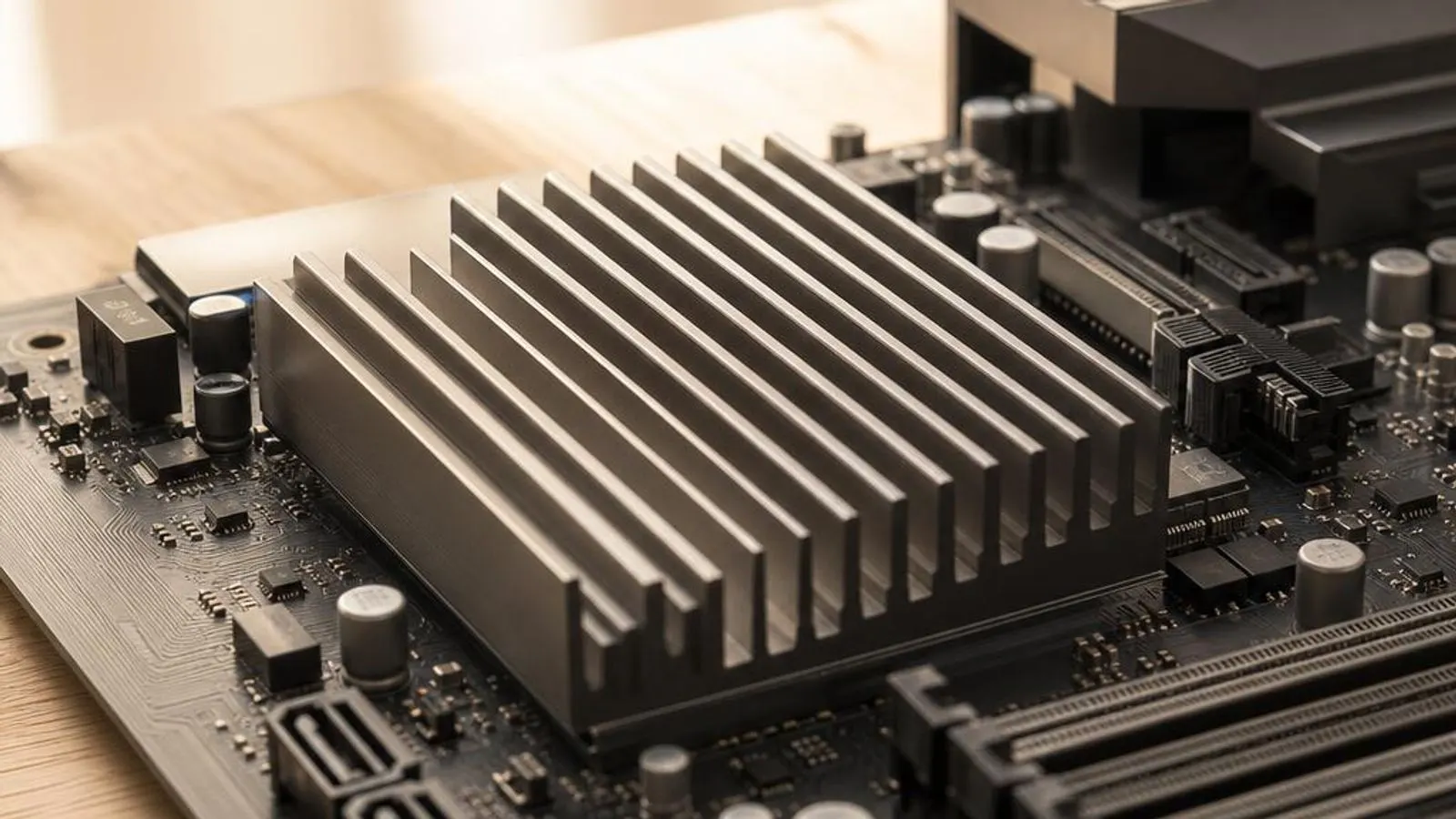

Modern PCs collapse what used to be a northbridge and southbridge into a single Platform Controller Hub, the PCH, linked to the CPU by a dedicated interconnect: Intel's DMI link or AMD's equivalent fabric. The CPU keeps a small number of high-priority PCIe lanes for the primary graphics slot and one M.2 socket, and everything else, extra M.2 sockets, the network chip, audio, and expansion slots, hangs off the PCH. The chipset driver's INF files are the map of that topology. Each descriptor pairs a hardware ID with the correct built-in Windows driver and a friendly name, so Device Manager can present a coherent tree rather than a list of anonymous PCI functions. Because so many other drivers bind to buses the PCH exposes, the chipset package is effectively the foundation the rest of the driver stack stands on, which is why it should be installed first on any fresh image.
PCIe lanes, root ports, and link training
A PCIe link negotiates, or trains, its speed and width when a device is detected: a Gen4 x4 slot and a Gen4 x4 drive settle on the fastest common setting. The chipset INF supplies the metadata Windows uses to associate a physical slot with a PCH root port and to apply the correct Active State Power Management policy for that port. When the descriptor is wrong or missing, two failure modes dominate. The link can train to a lower width or generation and never recover, so a fast NVMe drive posts benchmark numbers that look like a much older drive. Or an aggressive ASPM setting can drop the link to a low-power state at idle and fail to bring it back cleanly, which surfaces as a device that vanishes under load or a stream of WHEA correctable errors in the Event Viewer. A corrected INF restores stable training and appropriate power policy.
SMBus, I2C, and the sensors you can actually see
The System Management Bus is a slow, two-wire bus that carries housekeeping rather than data. It reads the SPD EEPROM on each memory module to report timings and capacity, and it lets a super-IO or embedded controller expose voltage, fan, and temperature sensors to monitoring software. The chipset package registers the SMBus and I2C controllers so the operating system and user tools can reach that bus. Two practical rules follow. First, if the SMBus controller shows as an unknown device, sensor readouts go blank and memory tools cannot read module identity, so naming the controller is the fix. Second, the SMBus does not arbitrate well between multiple masters, so running several monitoring apps at once can cause stalls or nonsense readings; keep one tool as the owner of the bus.
ACPI power management, sleep, and boost
The chipset bundle binds the ACPI components that govern how the platform saves power. CPU C-states idle individual cores, P-states scale frequency and voltage, and the S-states define sleep: S3 is classic deep sleep, while modern standby keeps the system in a low-power connected state. On the storage and USB side, Link Power Management idles SATA and USB links between transfers. Get these bindings right and the machine boosts responsively, idles cool, and sleeps deeply. Get them wrong and you see the familiar complaints: a CPU pinned near base clock because turbo residency never engages, a laptop that runs hot on battery, or a desktop that wakes the instant you sleep it because a PCH device is armed to wake. The powercfg utility is the diagnostic of choice here, exposing which sleep states are available and which devices are holding the system awake.
Where this driver comes from
A chipset driver reaches your PC by one of three routes, and understanding them prevents most mismatches. The first route is shipped with the operating system: Windows carries in-box class drivers and generic bus stubs so a new install can boot and enumerate a basic device tree, but those stubs name only a fraction of the PCH controllers, which is why a clean install often shows unknown PCI devices until a proper package is applied. The second route is delivered through system updates: Windows Update matches your hardware IDs against Microsoft's catalogue and offers signed chipset INF packages as optional driver updates. This is convenient and safe, but it can lag a platform launch and rarely includes the OEM power table a laptop needs. The third route is published by the hardware maker for a specific model: your board or laptop vendor validates a chipset bundle against a particular board revision and BIOS and posts it on that model's support page, described in words on this site rather than linked. For laptops and prebuilt systems this route is the correct one, because it carries the thermal and power tuning the generic package omits. Match the model exactly, and prefer the vendor route when tuned behaviour matters.
Reading chipset error codes in Device Manager
Device Manager reports chipset problems as numeric codes on a device's Properties page. Code 28 ('The drivers for this device are not installed') is the classic unknown-PCI-device state, cleared by installing the matched INF bundle. Code 10 ('This device cannot start') on a PCH controller usually points to a resource conflict or a bus that failed to initialise, and a reinstall plus reboot is the first response. Code 12 signals an IRQ or memory-range conflict, often after adding an expansion card that oversubscribes the PCH's resources; freeing a slot or adjusting BIOS resource settings resolves it. Code 43 on a PCH function means Windows stopped the device after it reported a fault, which on a root port frequently traces back to an ASPM mismatch corrected by a newer INF. Treat the code as a starting hypothesis, confirm the hardware ID on the Details tab, and match your fix to the specific controller rather than the whole chipset.
